RO7.0 offers 700 watts at 8Ω stereo. Each channel works at 2Ω to satisfy all requirements.
PRO7.0 adopts Audiocenter latest Class H+circuitry to eliminate the Class H cross switching distortion.
With carefully selected components like toroidal transformers, audiophile Wima capacitors, Toshiba transistors, Carling switch circuit breakers, Neutrik®connectors and Belden wires, etc. PRO7.0 has very clear and clean sound and high damping factor.
This makes PRO7.0 suitable for any kind of application, from high power loudspeakers to critical monitoring where very high requirements are mandatory.
It can be widely used in fixed installation and touring performance such as bar, nightclub, multi-functional hall, museum, religious venue, commerce site, lecture hall, wedding ceremony, etc.

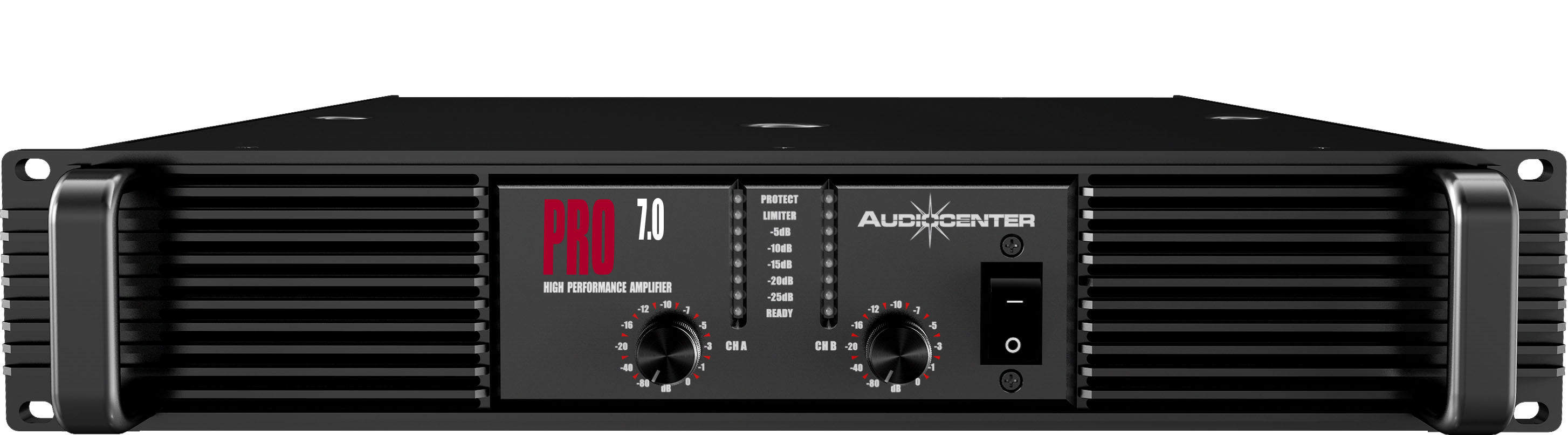

Audiocenter PRO 7.0 versterker 2x 700 watt @ 8 Ohm
Rated Power(20Hz-20KHz, <0.1%THD)
2×700W@8Ω stereo
2×1100W@4Ω stereo
2×1400W@2Ω stereo
2200W@8Ω bridge
2800W@4Ω bridge
A-Guard Protection System
DC protection /Short circuit protection /Smart overheat management /Overheat protection /Input overload protection /Output overload protection /Soft startup protection / Limiter protection Up to 9V
Frequency Response(1W 8Ω stereo)
20Hz-20KHz(±0.5dB)
Sensitivity
0.775V / 36dB /32dB
Input Connectors
Output Connectors
NEUTRIK® male XLR & female XLR
3×NEUTRIK® Speakon NL4MP
Filter Capacitor Capacity
12000μf / 80V×8
Input Impedance
Balanced 20KΩ/ Unbalanced 10KΩ
Crosstalk(20Hz-20KHz, Rated power 8Ω)
≥65dB
S/N Ratio(Rated power 8Ω, A weighted)
≥108dB
Damping Factor(1KHz＆8Ω)
≥500
Intermodulation Distortion
(20Hz-20KHz, half power)
≤0.05%
Total Harmonic Distortion
(20Hz-20KHz, Rated power 8Ω)
≤0.05%
Phase Response(1W＆8Ω, 20Hz-20KHz)
20Hz+4° 20KHz-12°
Slew Rate
≥45V/μs
Output Circuitry
Class H+
Power Consumption
(Dual channel driven 4Ω, 1/8RMS/230V)
3.4A
Rack Space
2U
Cooling
Back to front venting, mandatory cooling
Dimension(W×H×D)
483×88×456mm
Net Weight
22.5Kg
